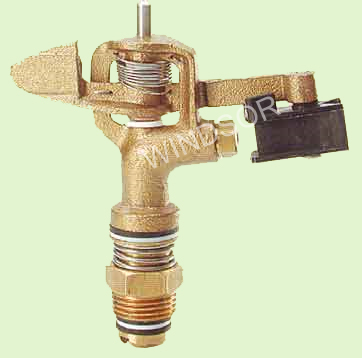

RHINO Modèle RH-1A |
|
TRAJECTOIRE D'ANGLE 25o CONNECTION 1/2" |
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 3.5 |
2.5 |
200 |
12.00 |
0.94 |
15.60 |
| 3.5 |
2.5 |
300 |
12.50 |
1.14 |
19.00 |
| RHINO Modèle RH-2 |
TRAJECTOIRE D'ANGLE 27o CONNECTION 3/4" |
|
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 5.0 |
3.0 |
200 |
14.50 |
1.66 |
27.60 |
| 5.0 |
3.0 |
250 |
14.50 |
1.80 |
30.00 |
| 5.0 |
3.0 |
300 |
15.50 |
2.02 |
33.60 |
| RHINO Modèle RH-3 |
TRAJECTOIRE D'ANGLE 30o CONNECTION 3/4" |
|
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 5.5 |
3.0 |
300 |
16.00 |
2.55 |
42.40 |
| 5.5 |
3.0 |
350 |
17.00 |
2.77 |
42.10 |
| RHINO Modèle RH-4 |
TRAJECTOIRE D'ANGLE 28o CONNECTION 1" |
|
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 5.5 |
6.0 |
300 |
17.50 |
4.09 |
68 |
| 5.5 |
6.0 |
350 |
18 |
4.42 |
74 |
| 5.5 |
6.0 |
400 |
18.50 |
4.72 |
79 |
| RHINO Modèle RH-5 |
TRAJECTOIRE D'ANGLE 25o CONNECTION 1
1/4" |
|
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 9.5 |
5.0 |
400 |
21.50 |
8.70 |
145 |
| 9.5 |
5.0 |
450 |
22.50 |
9.23 |
154 |
| RHINO Modèle Part / Full Circle RHS |
TRAJECTOIRE D'ANGLE 25o CONNECTION 1 1/2" |
|
Main
Nozzle |
Épandeuse Nozzle |
Pression à Sprinklers |
Casting
Radius |
Décharge |
f mm |
f mm |
kPa |
m |
m3/hr |
LPM |
| 12 |
5 |
200 |
22 |
8.58 |
143 |
| 12 |
5 |
300 |
24 |
10.05 |
175 |
| 12 |
5 |
500 |
29 |
13.62 |
227 |
| 14 |
5 |
200 |
23 |
11.22 |
187 |
| 14 |
5 |
300 |
25 |
13.92 |
232 |
| 16 |
5 |
500 |
30 |
17.70 |
295 |
| 16 |
5 |
300 |
26 |
17.40 |
290 |
| 16 |
5 |
500 |
32 |
22.50 |
375 |
| RHINO Modèle HR-I |
LOW TRAJECTOIRE D'ANGLE 7 o 1/2" BSP/NPT MALE THREADS |
|
| Nozzle Size(in Mm) |
Pressure(In Kg/cm Sqr) |
Diameter(in Meters) |
Discharge(LPM) |
| 3.17 |
0.35 |
9.00 |
2.70 |
| 0.70 |
11.00 |
3.90 |
| 1.05 |
12.00 |
5.00 |
| 1.41 |
12.50 |
5.90 |
| 1.76 |
13.00 |
7.30 |
| 2.11 |
13.50 |
8.40 |
| 2.46 |
15.50 |
9.30 |
| 2.81 |
15.00 |
10.00 |
| 3.57 |
0.35 |
9.50 |
3.60 |
| 0.70 |
12.00 |
4.50 |
| 1.05 |
13.00 |
5.90 |
| 1.41 |
13.50 |
7.30 |
| 1.76 |
14.00 |
8.40 |
| 2.11 |
14.50 |
9.30 |
| 2.46 |
15.50 |
10.00 |
| 2.81 |
16.00 |
10.70 |
| 3.97 |
0.35 |
10.00 |
4.50 |
| 0.70 |
12.00 |
5.90 |
| 1.05 |
13.00 |
8.20 |
| 1.41 |
14.00 |
9.30 |
| 1.76 |
15.50 |
10.50 |
| 2.11 |
15.00 |
11.60 |
| 2.46 |
15.50 |
12.50 |
| 2.81 |
16.00 |
13.60 |
| 4.36 |
0.35 |
11.00 |
5.90 |
| 0.70 |
13.00 |
8.00 |
| 1.05 |
14.00 |
9.50 |
| 1.41 |
14.50 |
10.90 |
| 1.76 |
15.50 |
12.10 |
| 2.11 |
16.00 |
13.20 |
| 2.46 |
16.50 |
14.30 |
| 2.81 |
17.50 |
15.90 |
|

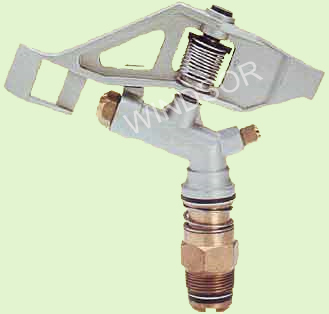

| RHINO Modèle HR-5 LP |
TRAJECTOIRE D'ANGLE 23o 1-1/4" BSP/NPT MALE THREADS |
|
| Nozzle Taille (en mm) |
Pression (en kg / cm Sqr) |
Diamètre (en mètres) |
Décharge (LPM) |
| 9.53*5.55 |
4.22 |
50.00 |
159.00 |
| 4.92 |
51.50 |
168.00 |
| 5.62 |
53.00 |
184.00 |
| 6.33 |
54.00 |
198.00 |
| 7.03 |
55.00 |
209.00 |
| 10.32*5.55 |
4.22 |
52.00 |
178.00 |
| 4.92 |
53.00 |
191.00 |
| 5.62 |
55.00 |
207.00 |
| 6.33 |
56.50 |
219.00 |
| 7.03 |
58.00 |
233.00 |
| 12.70*6.35 |
4.22 |
57.00 |
254.60 |
| 4.92 |
59.00 |
272.80 |
| 5.62 |
61.00 |
295.50 |
| 6.33 |
63.00 |
316.00 |
| 7.03 |
64.03 |
331.90 |
| 13.49*6.35 |
4.22 |
59.50 |
281.80 |
| 4.92 |
61.00 |
304.60 |
| 5.62 |
62.50 |
322.80 |
| 6.33 |
64.00 |
345.50 |
| 7.03 |
65.50 |
363.70 |
| 15.87*6.35 |
4.22 |
64.00 |
363.70 |
| 4.92 |
65.50 |
386.40 |
| 5.62 |
67.00 |
416.00 |
| 6.33 |
68.50 |
443.70 |
| 7.03 |
70.00 |
466.00 |
|
